Stabilisateur de tension triphasé
Protect your critical equipment from voltage fluctuations, power instability, and costly downtime with our high-performance 3 Phase Voltage Stabilizers. Designed for industrial, commercial, and infrastructure applications, our stabilizers automatically regulate voltage to ensure a consistent and reliable power supply for CNC machines, manufacturing lines, data centers, medical equipment, and other sensitive loads.
Available in Servo Controlled, Static (IGBT), and Outdoor Three Phase Voltage Stabilizers, with capacities ranging from 10kVA to 5000kVA+.
Why Choose Our Three Phase Voltage Stabilizers?
✔ Capacity Range: 10kVA – 5000kVA+
✔ Output Accuracy: ±1% to ±3%
✔ Wide Input Voltage Correction Range
✔ Servo, Static, and Customized Solutions Available
✔ CE & ISO Quality Management Support
✔ OEM / ODM Manufacturing Service
✔ Suitable for 50Hz and 60Hz Power Systems
Get Expert Assistance
Whether you are replacing an existing stabilizer or designing a new power system, our engineers can help you select the right model.
ASR WiFi Smart 3-Phase IGBT Static Voltage Stabilizer For Industrial
$499.00The ASR WiFi Smart 3-Phase IGBT Static Voltage Stabilizer is a cutting-edge and rapid voltage stabilizer specifically developed for today’s highly dynamic industrial power applications. Through its IGBT-based switching process in combination with the use of transformer stabilization, this voltage stabilizer is able to provide immediate, precise, and completely non-contact voltage correction.
The ASR series outperforms other servo stabilizers in terms of speed, efficiency, and ease of maintenance.
SBW-N 30KVA–800KVA Three Phase Servo Voltage Stabilizer | Industrial AVR 380V LCD Automatic Regulation System
$1,999.00La série SBW-N de stabilisateurs de tension triphasés à servomoteur est un stabilisateur de tension industriel robuste, conçu pour fonctionner dans des environnements électriques exigeants où une alimentation stable est essentielle. Ce régulateur de tension prend en charge des puissances allant de 30KVA à 800KVA et fournit une tension de sortie stable de 380V avec une haute précision.
The voltage stabilizer uses a sophisticated combination of compensation and servo control technologies that guarantee stable output voltage in case of unstable input voltage.

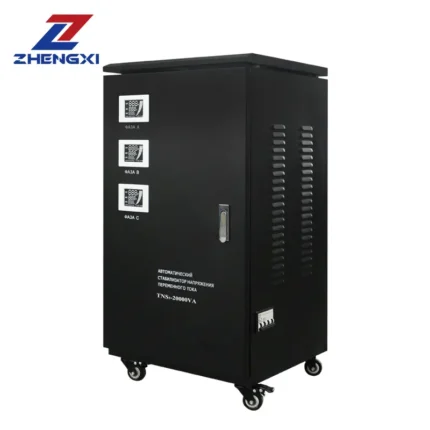

TNS Stabilisateur de tension électrique servo industriel triphasé 20kva-120kva
Le Stabilisateur de tension servo triphasé est conçu pour les applications industrielles nécessitant une alimentation stable et garantie. Il associe la technologie de contrôle des servomoteurs à des fonctions de protection avancées pour offrir une régulation précise de la tension (380V±3%) aux équipements sensibles tels que les machines à commande numérique, les robots et les lignes de production.
ZBW Series 200–2000kVA Smart Three-Phase IGBT Non-Contact Automatic Voltage Regulator Stabilizer(Fast Response LCD AVR)
The ZBW Series 200–2000kVA Smart Three-Phase Automatic Voltage Regulator (AVR) is an outstanding model of the three phase AVR stabilizer which ensures accurate and fast voltage regulation in tough conditions of heavy industrial facilities.
Based on the latest technology using microprocessor devices (MCU + high-speed AD + PLD), this automatic three phase voltage regulator monitors any changes in the input voltage and adjusts output voltage automatically due to static switching based on IGBT/SCR. As a result, a fully electronic and no contact AVR is obtained providing long-term performance without wear and tear.
Unlike classic servo voltage regulators, this automatic three phase voltage regulator ensures better performance, efficiency, and protection.
What Is a 3 Phase Voltage Stabilizer?
A Stabilisateur de tension triphasé, également connu sous le nom de Three Phase Automatic Voltage Regulator (AVR), is an electrical device designed to maintain a stable three-phase output voltage despite fluctuations in the incoming power supply.
It continuously monitors the input voltage and automatically corrects under-voltage and over-voltage conditions to deliver a consistent output voltage to connected equipment.
Without voltage regulation, industrial equipment may experience:
- Unexpected shutdowns
- Motor overheating
- PLC and inverter failures
- Reduced production efficiency
- Premature equipment aging
- Increased maintenance costs
How to Choose the Right 3 Phase Voltage Stabilizer
Selecting the correct voltage stabilizer starts with understanding your electrical system requirements.
Information Required for Selection
| Paramètres | Example |
|---|---|
| Capacité | 150kVA |
| Plage de tension d'entrée | 320V–460V |
| Tension de sortie | 380V |
| Fréquence | 50Hz |
| Type de charge | CNC Machines |
| Installation Environment | Indoor |
| Regulation Accuracy | ±1% |
| Bypass Requirement | Yes |
Quick Selection Checklist
Before requesting a quotation, please provide:
✓ Equipment Name
✓ Total Load Power (kW or kVA)
✓ Input Voltage Range
✓ Required Output Voltage
✓ Frequency (50Hz / 60Hz)
✓ Indoor or Outdoor Installation
✓ Motor Starting Characteristics
Besoin d'aide ?
Simply send us your equipment nameplate or electrical parameters, and our engineers will recommend the most suitable stabilizer model.
Our 3 Phase Voltage Stabilizer Product Range
Servo Controlled 3 Phase Voltage Stabilizer
Servo voltage stabilizers use a servo motor and variable transformer to maintain precise voltage regulation.
Recommended For
- CNC Machines
- Laser Cutting Machines
- Injection Molding Machines
- Printing Equipment
- Packaging Lines
- Industrial Manufacturing Plants
Avantages
- Cost-effective solution
- High efficiency
- Excellent reliability
- Wide voltage correction range
- Suitable for continuous operation
Available Capacity
10kVA – 3000kVA+
Static 3 Phase Voltage Stabilizer
Static stabilizers utilize advanced IGBT technology for ultra-fast voltage correction.
Recommended For
- Centres de données
- Medical Equipment
- Semiconductor Facilities
- Laboratories
- Telecommunications Infrastructure
Avantages
- Response time <20ms
- No moving parts
- High precision regulation
- Minimal maintenance
- Ideal for sensitive electronics
Available Capacity
10kVA – 2000kVA+
Outdoor Three Phase Voltage Stabilizer
Engineered for harsh environmental conditions.
Recommended For
- Solar Power Plants
- Mining Operations
- Oil & Gas Facilities
- Construction Projects
- Utility Applications
Caractéristiques
- IP54 / IP55 Protection
- Anti-corrosion Design
- Weather-resistant Enclosure
- Long Service Life
Technical Specifications
| Paramètres | Spécifications |
|---|---|
| Capacité | 10kVA – 5000kVA+ |
| Tension d'entrée | Customizable |
| Tension de sortie | 380V / 400V / 415V |
| Fréquence | 50Hz / 60Hz |
| Précision | ±1% to ±3% |
| Efficacité | Up to 98% |
| Protection Class | IP20 / IP23 |
| Méthode de refroidissement | Air Cooling |
Servo vs Static Voltage Stabilizer: Which One Is Better?
| Fonctionnalité | Servo Stabilizer | Static Stabilizer |
|---|---|---|
| Technologie | Servo Motor | IGBT |
| Regulation Accuracy | ±1% | ±1% |
| Response Speed | <1 Second | <20ms |
| Maintenance | Low | Very Low |
| Coût | Lower | Higher |
| Sensitive Equipment | Good | Excellent |
| Industrial Loads | Excellent | Excellent |
Recommended Choice
Choose a Stabilisateur de tension du servo si :
- Cost-effectiveness is important
- Equipment is primarily industrial machinery
- Moderate voltage fluctuations occur
Choose a Static Voltage Stabilizer si :
- Equipment is highly sensitive
- Fast response is required
- Downtime risk must be minimized
FAQ
What size 3 phase voltage stabilizer do I need?
The required size depends on your total load capacity, starting current, and future expansion requirements.
Can a voltage stabilizer work with a generator?
Yes. Our stabilizers can be configured for generator and hybrid power systems.
What is the difference between a voltage stabilizer and a transformer?
A transformer changes voltage levels, while a voltage stabilizer automatically regulates fluctuating voltage to maintain a stable output.
What is the typical efficiency?
Most industrial models achieve up to 98% efficiency.
Can the stabilizer be installed outdoors?
Yes. Outdoor models with IP54 or IP55 protection are available.
What certifications can be provided?
Depending on project requirements, CE, ISO, and other relevant documentation can be supported.
How long does a voltage stabilizer last?
With proper maintenance, industrial stabilizers typically provide 10–15 years of service life or longer.
