Product Features:
⚡ Easy Conversion
Easily convert 380V three-phase to 220V single-phase, allowing you to use regular single-phase devices even when only a three-phase supply is available.
💡 High Efficiency, Low Energy Loss

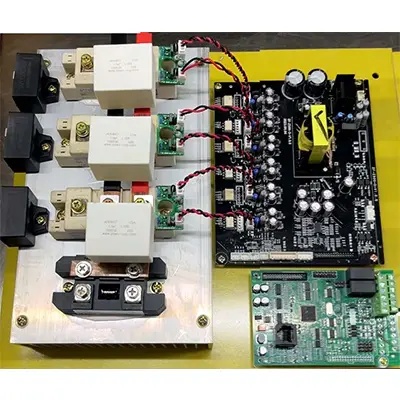

Using advanced SPWM technology, this transformer delivers a clean sine wave output with over 87% efficiency and less than 2% waveform distortion, leading to lower electricity bills and more stable performance.
🔍 Smart Display & Monitoring
An HD LCD screen shows real-time voltage, current, and frequency, keeping you informed about the transformer’s status and performance at all times.
🛡️ Built-In Safety
This transformer features overload and short-circuit protection, auto shutdown, and an alarm system. A soft-start function prevents sudden power surges, extending the lifespan of your devices. The quick response time (≤2ms) ensures that your equipment is always well-protected.
❄️ Cool & Quiet Operation

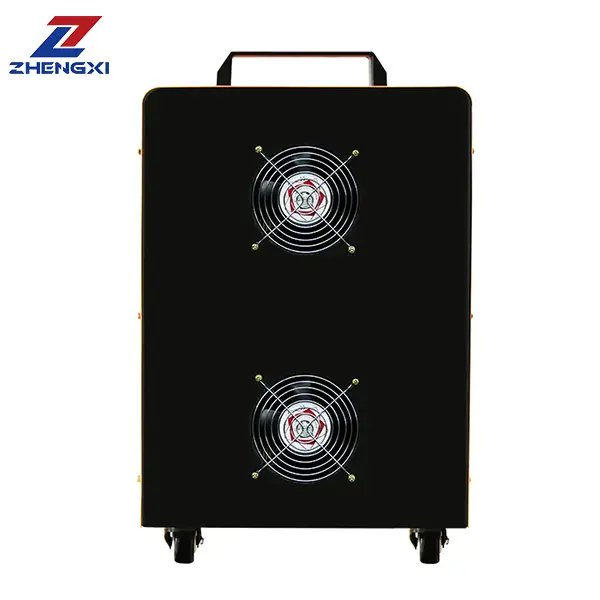

Equipped with dual cooling fans and a low-noise design (<55 dB), this transformer runs smoothly even during extended operation periods.
🚚 Portable & Durable
Designed with sturdy wheels and ergonomic handles for easy movement, along with a heavy-duty shell to provide extra protection for the unit.
Technical Parameters
| Model | DZW-1.5KVA DZW-2.2KVA DZW-3KVA DZW-4KVA DZW-5.5KVA DZW-7.5KVA |
| Response speed | 10ms |
| Adjustment speed | 100V/S |
| Circuit Method | IGBT / PWM Modulation |
| Output waveform | Standard sine wave CF=1.4 |
| Output Current | Phase Current High Grade 41A Low Grade 82A |
| Frequency stabilization | ≤0.01% |
| Load Voltage Stabilization | ≤1% |
| Waveform Distortion | ≤2% (pure resistive load) |
| Phase Angle | 120°±1° |
| Crest factor ratio | 31 |
| Protection reaction time | ≤2ms |
| Efficiency | ≥87% |
Specifications
| MODEL | Input voltage | Output voltage | Classifications | Measurement(mm) Length*Width*Height |
| DZW-1.5KVA | 340–430V 3-Phase | 220V ±1-3% Single-Phase | Three-phase three-wire (Ordinary type) | 275*430*395 |
| DZW-2.2~5.5KVA | 275*430*395 | |||
| DZW-7.5~11KVA | 355*580*630 | |||
| DZW-15KVA | 350*580*630 | |||
| DZW-20KVA | 350*580*630 | |||
| DZW-30KVA | 730*455*655 | |||
| DZW-40KVA | 730*455*655 | |||
| DZW-50KVA | 730*455*655 | |||
| DZW-1.5~5.5KVA | 340–430V 3-Phase | 220V ±1-3% Single-Phase | Three-phase four-wire (with zero line) | 550*350*620 |
| DZW-7.5~11KVA | 700*450*700 | |||
| DZW-15KVA | 700*450*700 | |||
| DZW-20KVA | 700*450*700 | |||
| DZW-25KVA | 700*450*700 | |||
| DZW-30KVA | 700*450*700 | |||
| DZW-40KVA | 450*700*1190 |
